Dime is a software to acquire a template using a reflex digital camera.

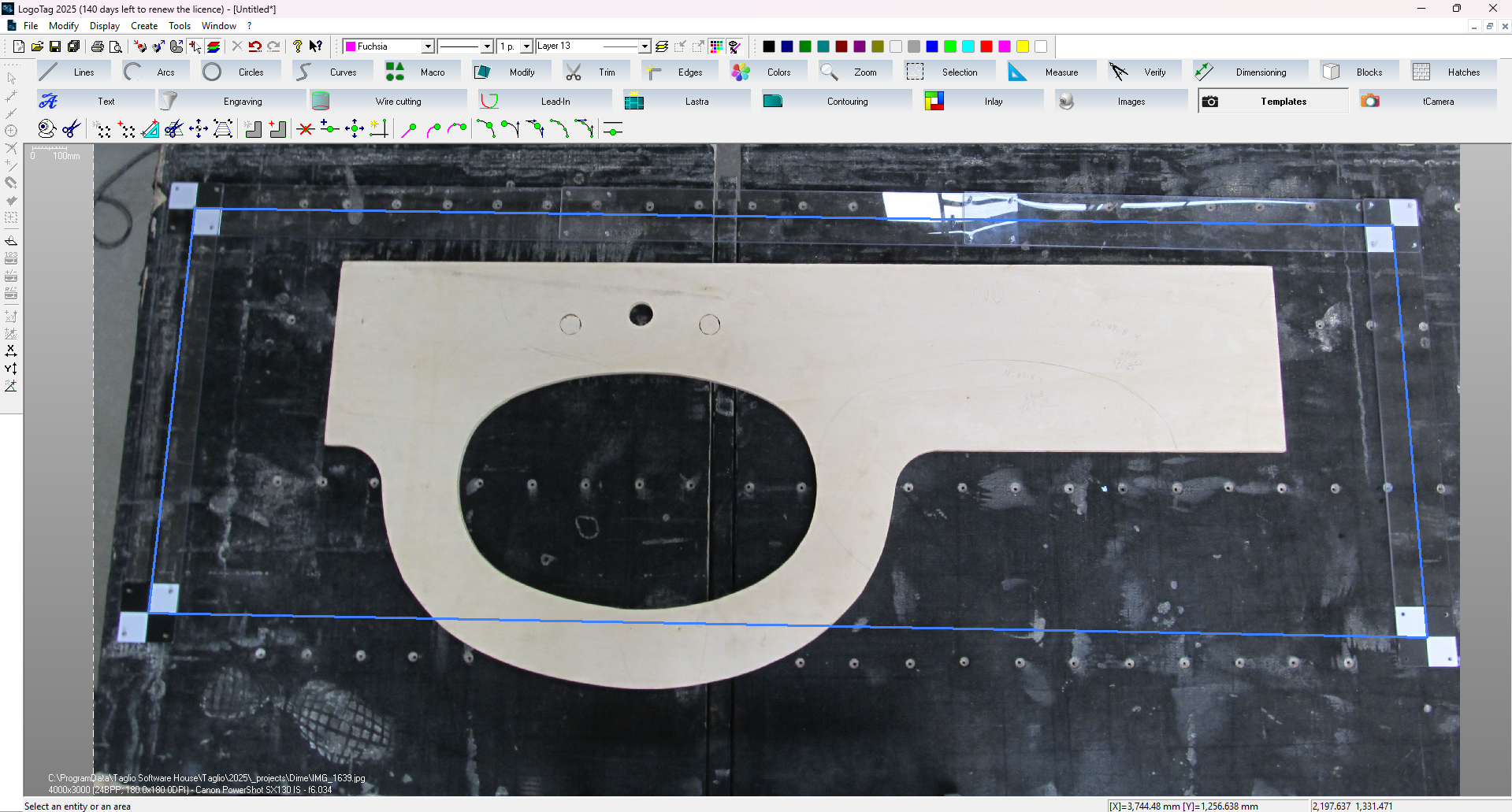

Dime is a software to acquire a template using a reflex digital camera. It’s useful to cut wood, plastic or paper templates and it is much faster and easier to use than a laser installed on the cutting table or working center machine and doesn’t affect the regular production flow. Through the digital camera, the software captures the image of the template and save the drawing in the most common file format (e.g. TAG, DXF or DWG) requiring a minimum user effort.
Dime
Functionality
- Get BMP, JPEG, and image file formats from digital cameras
- Scale, rotate, mirror, and zoom images
- Smooth, contrast and reduction in black & white
- Vectorization quality parameters
- Automatic track the selected profile
- Polyline processing graphic management
- Convert polylines into tangent arcs and segments
- Reference point detection and automatic size definition
- Orthogonality and circumference recognition
- Lens & perspective calibration algorithms
- Template thickness correction
- Output as DXF/DWG as well as to all Taglio file formats
